CircuitCraft

A Fabric mod that turns Minecraft into an analog electronics lab. Place resistors, capacitors, inductors, memristors, diodes, transistors (NPN/PNP/NMOS/PMOS), and all four classic dependent/controlled sources (VCVS/VCCS/CCCS/CCVS) as blocks, wire them up, drive them with power supplies, function generators, or an AC source, and probe the live voltage/current/frequency response with a handheld oscilloscope — all backed by a real modified-nodal-analysis (MNA) circuit solver, the same family of algorithm SPICE uses, not a scripted approximation.

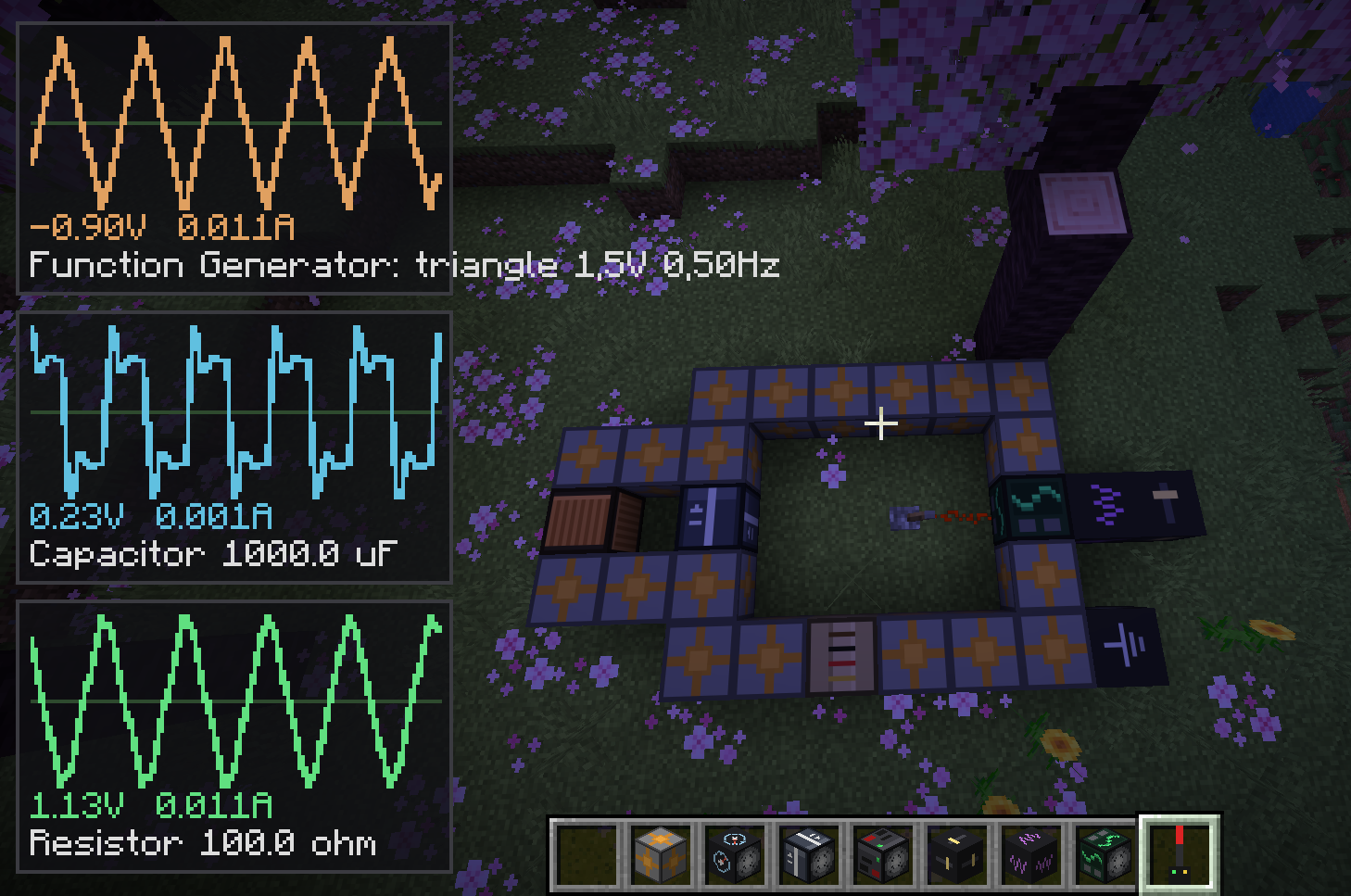

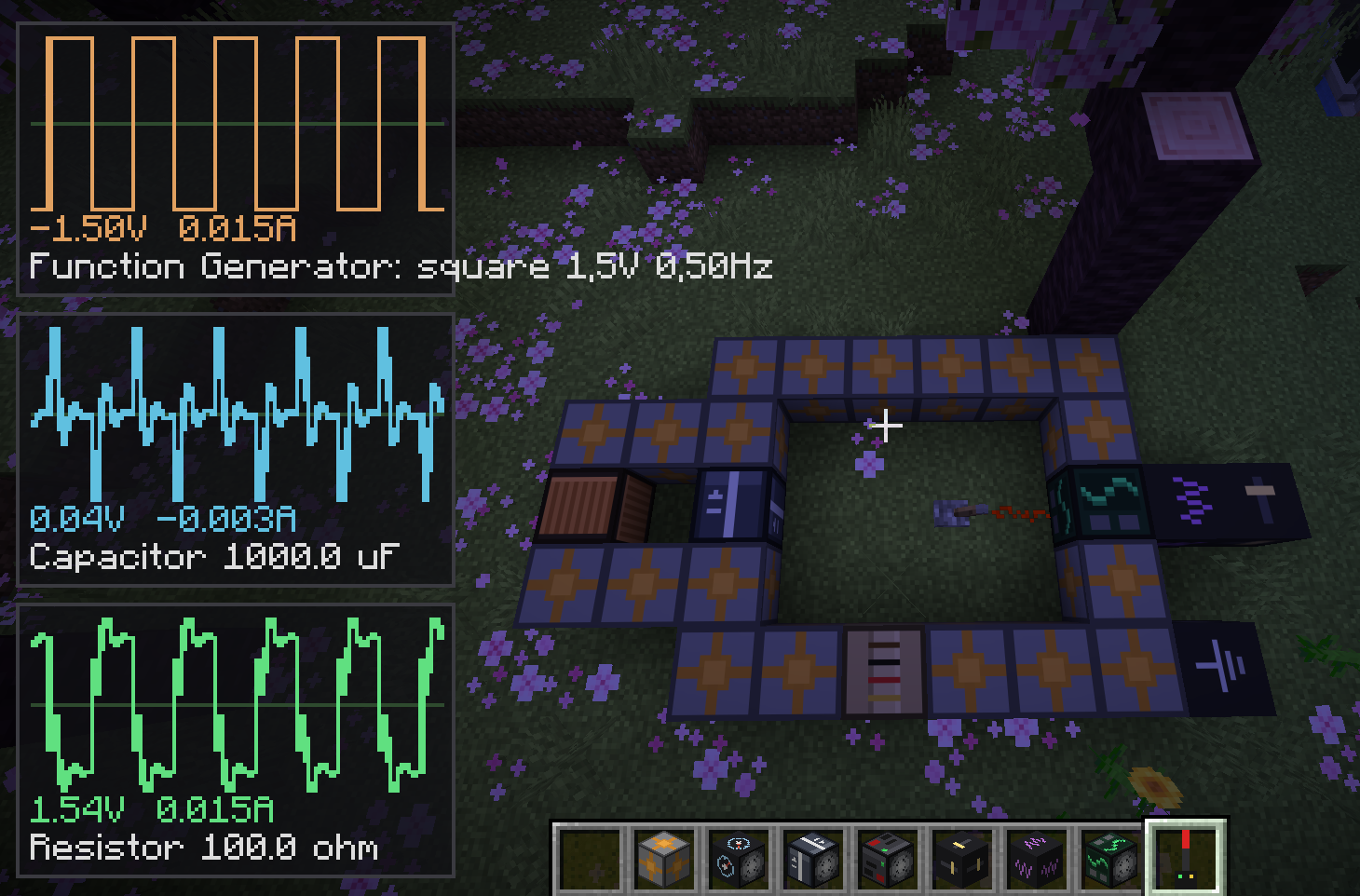

This is a teaching tool: the goal is for the in-game behavior to actually match what you'd see on a real bench (RC charge curves, RLC ringing, a memristor's resistance drifting with accumulated charge, a diode's rectified output, a transistor switching on and off), just at Minecraft-tick timescales instead of real-world ones.

What's in the box

32 items, sold across two trading villager professions so a classroom world can hand out components without creative-mode item-give commands:

• Electrician (job site: Breadboard) — resistor, capacitor, inductor, memristor, power supply, function generator (+ voltage/frequency modules), wire, ground, ammeter, ideal op-amp, AC source, R2V/V2R redstone-voltage converters, and three oscilloscope probes (time-domain, X-Y, and AC/Bode-plot).
• Electronics Engineer (job site: Workbench) — diode, NPN/PNP/NMOS/PMOS transistors, current source, voltmeter, and all four classic dependent sources (VCVS/VCCS/CCCS/CCVS).

Two solvers run side by side on the same wiring: an ordinary transient (time-domain) solver for the oscilloscope's live traces, and a separate small-signal AC solver for the AC Probe's Bode-plot frequency sweeps (magnitude + phase, log-spaced) — so the same circuit can show you both a step response and a frequency response.

Ready-made builds

Eight datapack functions build things for you - no manual wiring required. Two set up trading villagers:

/function circuitcraft:electrician_shop
/function circuitcraft:engineer_workshop

Six wire up complete worked-example circuits (a voltage divider, RC low-pass and RLC resonance Bode plots, a half-wave rectifier, a memristor pinched-hysteresis loop, and an op-amp open-loop Bode plot), each at default component presets with an unflipped lever and the right oscilloscope probe already in hand:

/function circuitcraft:voltage_divider
/function circuitcraft:rc_lowpass
/function circuitcraft:rlc_resonance
/function circuitcraft:half_wave_rectifier
/function circuitcraft:memristor_hysteresis
/function circuitcraft:opamp_bode

See the README for the exact right-click counts needed to reach each experiment's intended values and predicted results.
