Formula Loader

A mod for developers and datapack creators. Reads custom formulas from JSON files and evaluates them with parameters passed via the in-game command:

/formula <namespace:name> <parameters...>

or Java method.

Supported Operations

Arithmetic operators: +, -, *, /, % (floor remainder: a - floor(a / b) * b)

Two-argument formulas: min(x, y), max(x, y), pow(x, y), log(x, y) (logarithm base x of y), div(x, y) (floor division toward negative infinity)

One-argument formulas: round(x), floor(x), ceil(x), abs(x), exp(x), trunc(x) (truncation toward zero)

Trigonometric formulas: sin(x), cos(x), tan(x), asin(x), acos(x), atan(x)

Special — rem(x, y): Returns the remainder x - floor(x / y) * y and simultaneously writes the quotient floor(x / y) back into x. Note that if you write #a = rem(#a, #b), the assignment #a = ... will overwrite the quotient that rem just stored into #a with the return value (the remainder), so #a ends up holding the remainder, not the quotient.

Unary minus is supported without requiring parentheses: -3, -x, -min(a, b), 1 + -x all work.

Performance

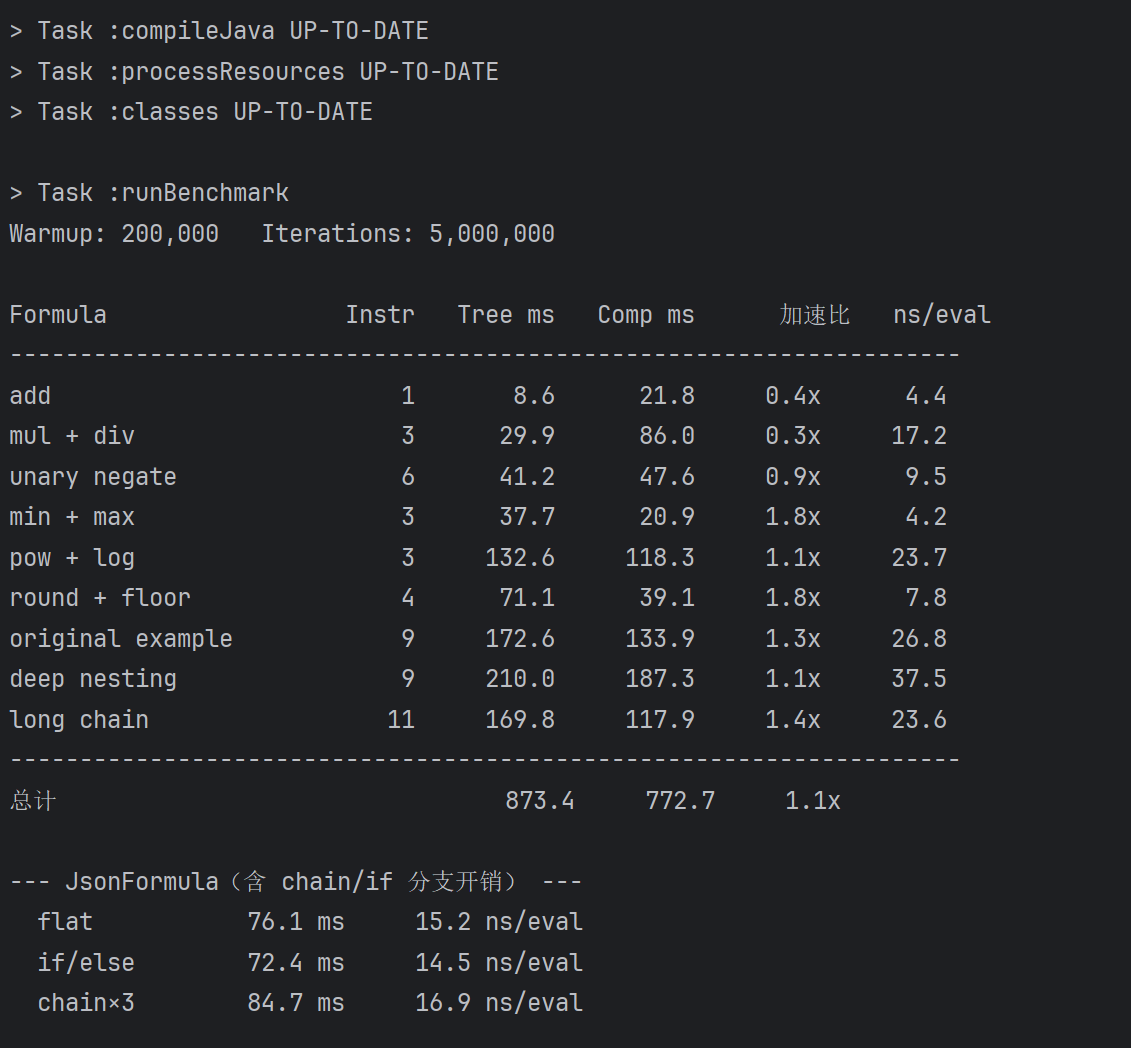

Formulas are pre-compiled at load time into an optimized stack-based bytecode VM. Short formulas (4 or fewer operations) benefit from loop unrolling and super-instruction merging (e.g., variable-variable binary operations become single opcodes). Constant folding is applied at compile time. Benchmarks on a typical desktop JVM:

• Simple arithmetic: ~9 ns per evaluation
• Chained conditionals (3 branches): ~15 ns per evaluation
• Sequential steps (3 steps): ~14 ns per evaluation
• Trigonometric with rounding: ~40 ns per evaluation

In practice, even 3 million calls complete in under 120 ms. Performance is not a concern.

Client-Side Installation

This mod is optional on the client. If you only need server-side computation, client installation is unnecessary. If you need to display values in UI elements, install on the client to provide the formulas locally. When another mod that requires both sides (e.g. Tinkers' Armor Extension) deeply integrates this mod, this mod becomes a transitive dependency and must be installed on the client as well.

For Developers

1. Access loaded formulas via FormulaManager.getOrNull(ResourceLocation) and evaluate with formula.accept(double...).
2. Use FormulaBuilder to programmatically construct formula JSON. Formulas are loaded from data/<namespace>/formula/ at startup.

For Data Pack Creators

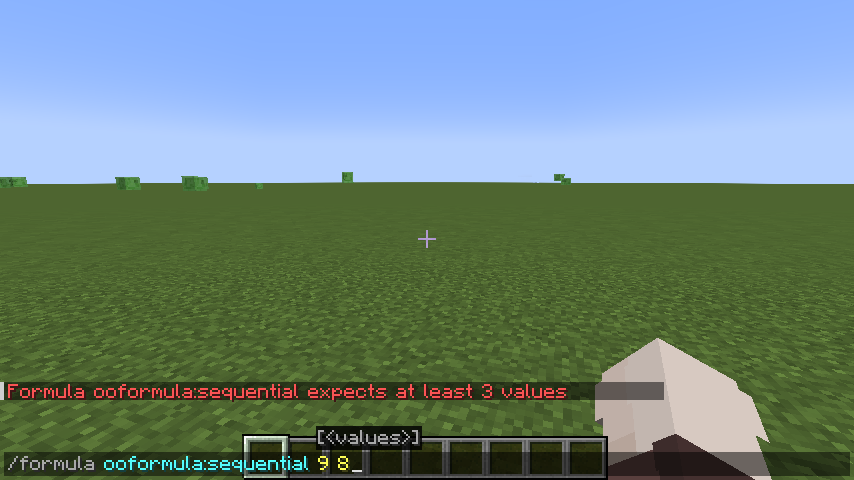

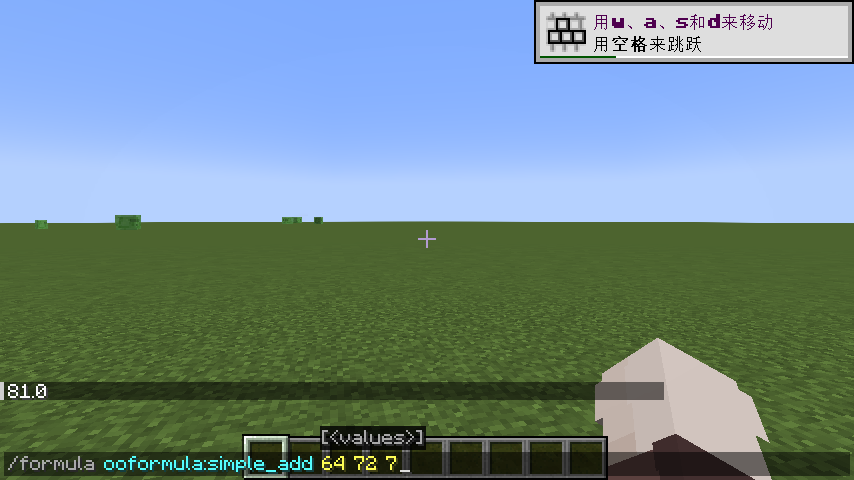

Use the /formula command to evaluate formulas with parameters in-game. This replaces scoreboard-based computations that would require dozens of commands with a single call, significantly improving datapack performance and readability.

JSON Format Reference

Simple Formula

{
    "inputs": ["result", "left", "right"],
    "formula": "#result = #left + #right * 2"
}

Sequential Steps

{
    "inputs": ["a", "b", "c"],
    "formula": [
        "#a = #b + #c",
        "#b = #a * #c",
        "#a = #b + 1"
    ]
}

If/Else Branching

{
    "inputs": ["score", "kills", "deaths"],
    "formula": {
        "if": "#kills > #deaths",
        "formula": "#score = #kills * 3 - #deaths * 2",
        "else": "#score = max(0, #kills - #deaths)"
    }
}

Conditional Chain (if / else-if / else)

{
    "inputs": ["result", "value"],
    "formula": {
        "chain": [
            {"condition": "#value >= 100", "formula": "#result = #value * 2"},
            {"condition": "#value >= 50",  "formula": "#result = #value * 1.5"},
            {"condition": "#value >= 10",  "formula": "#result = #value"}
        ],
        "default": "#result = 0"
    }
}

Mixed Nesting (Sequential + Conditional)

{
    "inputs": ["result", "base", "modifier"],
    "caches": ["scaled"],
    "formula": [
        "#scaled = log(2, #base + 1)",
        {
            "chain": [
                {"condition": "#modifier > 10", "formula": "#result = #scaled * #modifier * 2"},
                {"condition": "#modifier > 0",  "formula": "#result = #scaled * #modifier"}
            ],
            "default": "#result = #scaled"
        }
    ]
}

Explicit Output Slot

By default the result of the last step is returned. Use "output" to specify a different variable:

{
    "inputs": ["dummy", "x", "y"],
    "caches": ["tmp", "extra"],
    "output": "#extra",
    "formula": [
        "#tmp = #x * #y",
        "#dummy = #tmp + #x",
        "#extra = #tmp * 2 + #y"
    ]
}

Numeric Mode (Abbreviated)

{
    "input": 3,
    "cache": 2,
    "output": "#4",
    "formula": [
        "#0 = #1 + #2",
        "#3 = #0 * #1",
        "#4 = #3 + #2"
    ]
}

FormulaBuilder — Developer Guide

FormulaBuilder is a fluent API for generating formula JSON in Java. It automatically adds the # prefix to named variables.

I. Quick Start

// Named variables — automatic # prefix. "result = x + y" becomes "#result = #x + #y"
String json = FormulaBuilder
    .inputs("result", "x", "y")
    .flat("result = x + y + 2")
    .build();

// Numeric mode — write # manually
String json = FormulaBuilder
    .input(3)
    .flat("#0 = #1 + #2 + 2")
    .build();

II. Defining Inputs

// Named inputs (recommended) — automatic # prefix
FormulaBuilder.inputs("result", "amount", "tick")

// Numeric input — generates "input": 3; write #0, #1, #2 manually
FormulaBuilder.input(3)

III. Defining Caches (Intermediate Variables)

// Named caches — automatic # prefix
.caches("tmp1", "tmp2")    // generates "caches": ["tmp1","tmp2"]

// Numeric caches — write #3, #4 manually
.cache(2)                  // generates "cache": 2

IV. Output Field

.output("#result")    // specify which variable to return
// If omitted, the last step's result is returned.

V. Formula Shapes

flat — Single formula string. Returns FormulaBuilder.

.flat("result = x + y + 2")

array — Sequential steps. Each step can read results of previous steps. Returns FormulaBuilder.

.array(
    "a = b + c",
    "b = a * 2"
)

ifelse — Single if/else shorthand. Returns FormulaBuilder.

.ifelse(
    "kills > deaths",           // condition
    "score = kills * 3",        // if-true branch
    "score = deaths"            // else branch
)

mixed() — Enters a MixedBlock<P>. Entries execute sequentially and can include flat formulas, inline conditions, and nested blocks. Call .exit() to return to the parent context (the P type parameter).

b.inputs("a", "b").mixed()
    .flat("a = b + 1")                       // plain formula
    .cond("b > 10", "a = b * 2")             // inline condition shortcut
    .exit()                                   // return to FormulaBuilder
.build();

Inside a MixedBlock, the following methods are available:

• .flat(String) — single formula
• .array(String...) — sequential formulas
• .cond(String condition, String formula) — inline condition shortcut
• .cond(String condition) — enters a CondBlock<MixedBlock<P>> for a complex body
• .ifelse(String cond, String ifTrue, String ifFalse) — if/else shorthand
• .chain() — enters a ChainBlock<MixedBlock<P>>
• .mixed() — enters a nested MixedBlock<MixedBlock<P>>

cond(String) — Enters a CondBlock<P> representing a single {"condition":..., "formula":...} entry. Supports .flat(), .array(), .mixed(). .exit() returns to the parent.

b.inputs("a", "b").mixed()
    .cond("b > 10").mixed()                  // complex body via nested mixed
        .flat("a = b * 2")
        .flat("a = a + 1")
    .exit()                                   // exit nested mixed
    .exit()                                   // exit CondBlock, back to MixedBlock
.exit()
.build();

chain() — Enters a ChainBlock<P>. Conditions are tested top-to-bottom; the first match executes. If none match, the def branch executes. .exit() returns to the parent.

b.inputs("result", "value").chain()
    .cond("value >= 100", "result = value * 2")   // inline: cond(c, f)
    .cond("value >= 50").mixed()                   // CondBlock with complex body
        .flat("result = value * 1.5")
    .exit()
    .def("result = 0")                              // default branch
.exit()
.build();

Inside a ChainBlock, the following methods are available:

• .cond(String condition, String formula) — inline condition shortcut
• .cond(String condition) — enters a CondBlock<ChainBlock<P>>
• .def(String formula) — single formula as default
• .defArray(String... formulas) — sequential formulas as default
• .defMixed() — enters a MixedBlock<ChainBlock<P>> as default

VI. Nested Block Summary

The parameterized P type tracks the parent context at compile time — .exit() always returns the correct parent type without casting.

VII. Building Output

.build()          // Returns String — formatted JSON, for writing to files
.buildFormula()   // Returns JsonFormula — for direct evaluation in code

VIII. Automatic # Prefix Rules

After declaring inputs("result","x","y"), these strings are processed automatically:

The # prefix is NOT added again when already present: "#result = #x + #y" stays as-is, and numeric references like "#0 = #1 + #2" are unaffected.

Important: Do not name variables after formula names (avoid min, max, pow, log, etc. as variable identifiers).

IX. JSON Format Correspondence

X. Typical Use Cases

// Basic arithmetic
FormulaBuilder.inputs("r", "a", "b")
    .flat("r = a + b * 2")
    .build();

// Sequential computation with cache
FormulaBuilder.inputs("r", "base", "mod")
    .caches("logval")
    .array(
        "logval = log(2, base + 1)",
        "r = logval * mod"
    )
    .build();

// Multi-condition chain
FormulaBuilder.inputs("result", "val").chain()
    .cond("val >= 100", "result = val * 2")
    .cond("val >= 50", "result = val")
    .def("result = 0")
.exit().build();

// If/else shorthand
FormulaBuilder.inputs("score", "kills", "deaths")
    .ifelse(
        "kills > deaths",
        "score = kills * 3 - deaths * 2",
        "score = max(0, kills - deaths)"
    )
    .build();

// Numeric mode (no named variables)
FormulaBuilder.input(3).cache(1).output("#3")
    .array(
        "#0 = #1 + #2",
        "#3 = #0 * 2 + #1"
    )
    .build();

// Mixed block with condition and chain
FormulaBuilder.inputs("a", "b", "c").mixed()
    .flat("a = b + c")
    .cond("b > 10", "a = a * 2")
    .chain()
        .cond("a > 100", "a = 100")
        .def("a = a")
    .exit()
.exit().build();
