Description

Liquid Lab is a fluid API to streamline the creation of custom fluids on fabric, because nearly every fluid attribute is hardcoded. Some features include setting fog color, data driven mixing behavior, and custom gaseous fluids that flow upwards. This API exists to make high quality fluids and not just reskinned water or lava.

Features

Base Fluid Changes

Lots of utility methods added to the base Fluid class

Entity Splashing

• Done through onEntityEntry
• Called when an entity first touches the fluid
• Params:
  • World the entity is in
  • Entity that touched the fluid

Entity Interactions

• Done through onEntityCollision
• Called while an entity is within the fluid
• Params:
  • World the entity is in
  • Block Position of the fluid
  • Entity that is within the fluid

Entity Viscosity

• Done through getFluidMotion
• Used for the fluid's push force and viscosity
• Params:
  • World the entity is in
  • Returns a FluidMotion object storing:
    • XYZ velocity multiplier for an entity
    • Push force of the fluid
    • Movement speed for an entity actively moving

Item Viscosity

• Done through getItemMotion
• Used for an item entity's buoyancy and viscosity
• Params:
  • World the entity is in
  • Returns a FluidMotion object storing:
    • XYZ velocity multiplier for an item
    • Maximum vertical velocity of an item
    • How fast an item rises in the fluid

Fog

• Done through getFogProperties
• Enables the fluid to have special fog
• Params:
  • World the entity is in
  • Position of the cameara
  • Entity that is viewing the fog
  • Returns a FogProperties object storing:
    • Fog start in blocks
    • Fog End in Blocks
    • RGB color of the fog

Rain Particles

• Done through getRainParticle
• Gives the fluid unique splash particles when rain falls onto it
• Returns:
  • The particle to use when the fluid is rained on

Bucket Sounds

• Done through getBucketEmptySound
• Enables the fluid to not only have a custom filling sound, but also a custom emptying sound
• Returns:
  • The sound to make when a bucket is emptied

Pathfinding

• Done through canPathfindThrough
• Allows a fluid to directly identify weather something should try to pathfind through it
• Params:
  • The type of navigation an entity has
  • Returns:
    • If it is valid to pathfind through this fluid

Fluid Tags

7 fluid tags are added by the API:

• liquid_lab:enhanced_mobility
  • Defines that this fluid is swimmable and has sprint swimming
  • liquid_lab:swimmable
    • Defines if this fluid can be swum in
  • liquid_lab:drowns
    • Defines if this fluid will drown entities submerged within it
  • liquid_lab:evaporates
    • Defines if the fluid cannot be placed in the nether
  • liquid_lab:fall_damage_reducing
    • Makes the fluid affect fall damage the same way lava does
  • liquid_lab:fall_damage_resetting
    • Makes the fluid affect fall damage in the same way as water
  • liquid_lab:gaseous
    • Simply marks the fluid as a gas, does not have any other functionality

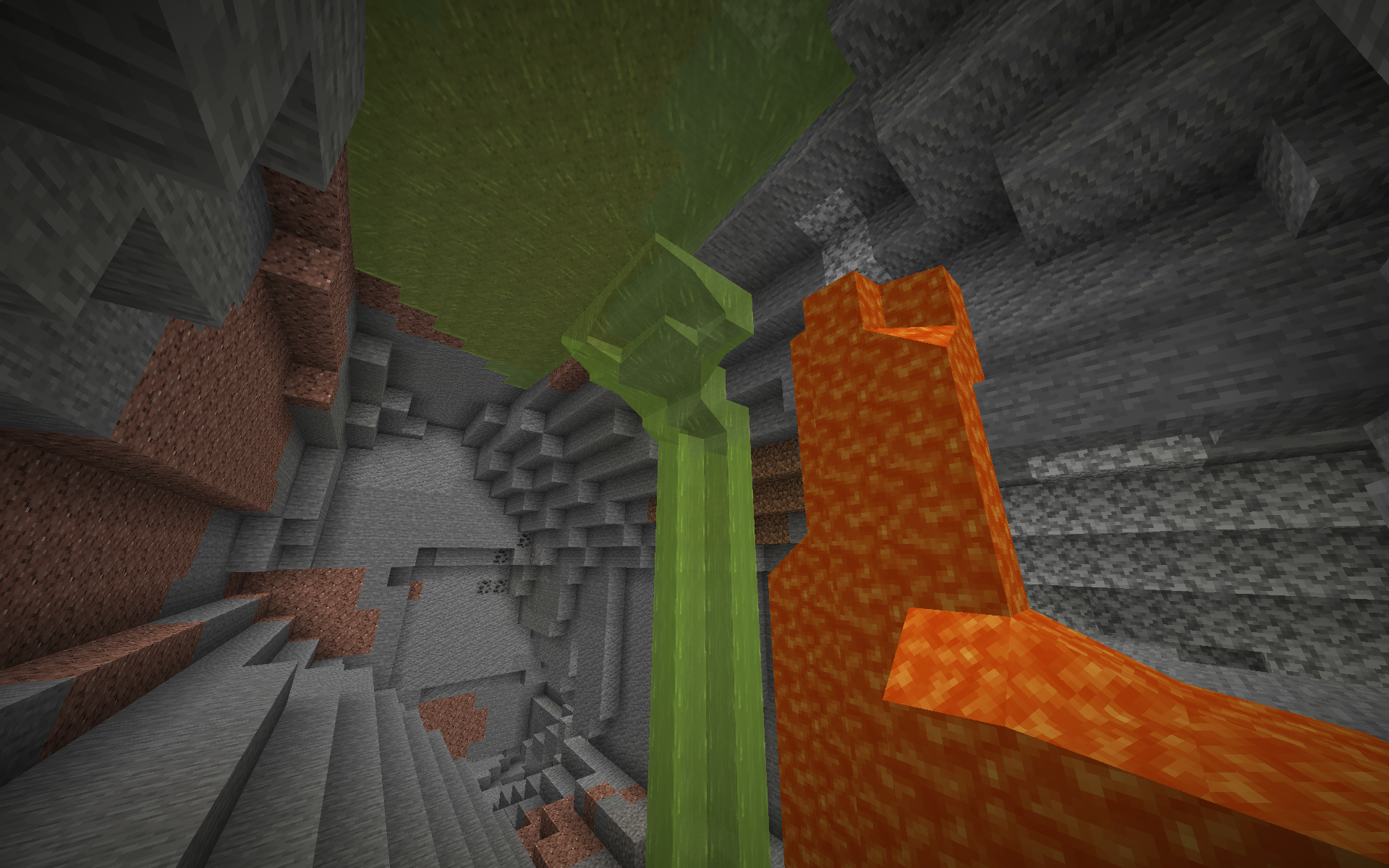

Gaseous Fluids

Additionally, the API also adds reversed fluids that flow upwards. Gaseous fluids are registered in the same way as regular fluids, except the block form is created with GasFluidBlock and the fluid form is created by extending FlowableGasFluid. For rendering, use SimpleGasFluidRenderHandler, rather than SimpleFluidRenderHandler in your client initializer.

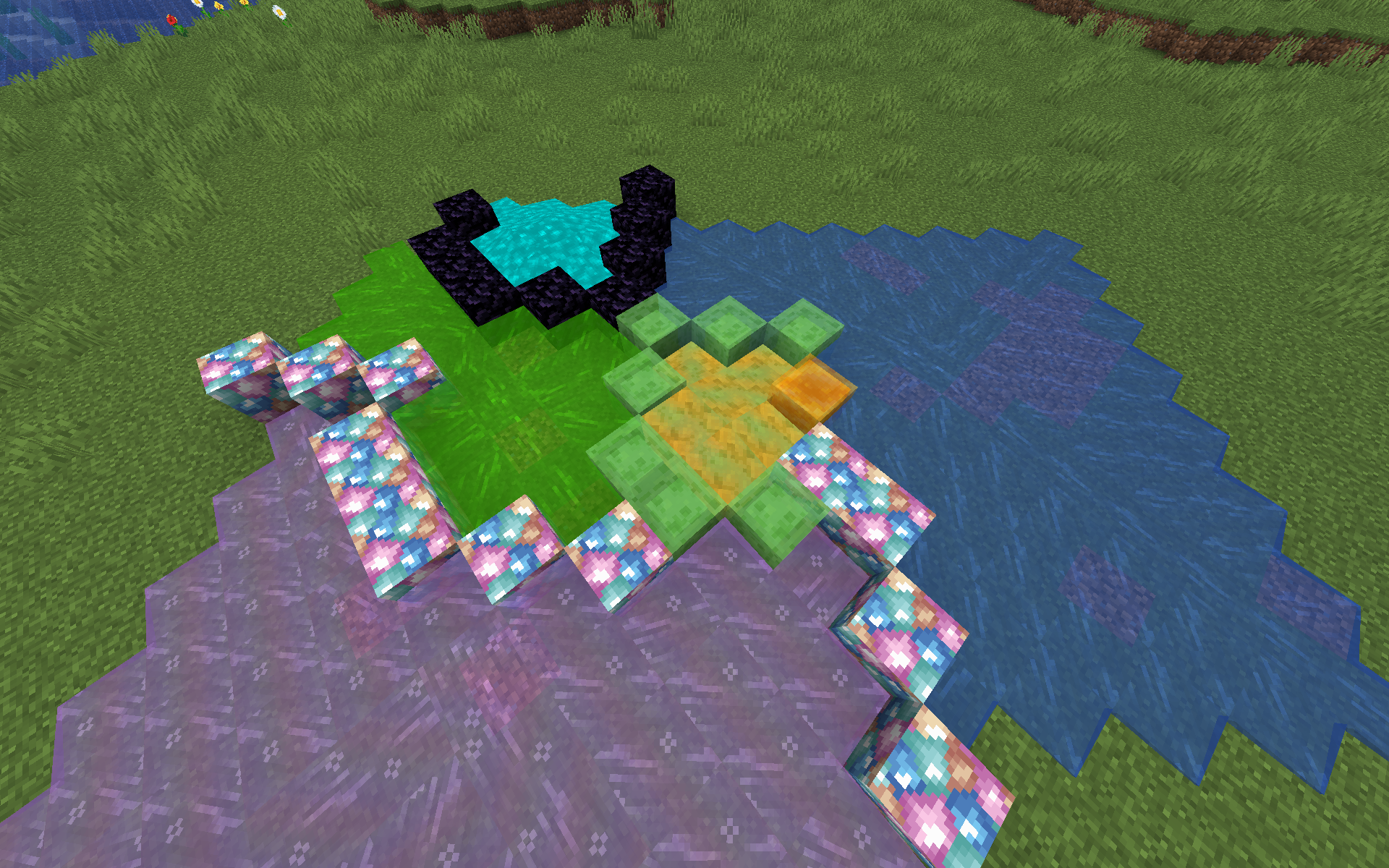

Fluid Mixing

A simple yet flexable system is provided for creating data driven fluid mixing to allow for compatibility between mods.

Folder Structure

To add a fluid mix, first create a folder named fluid_mixing in the namespace folder. Files here should be JSON files named as a valid fluid tag for that namespace to fuction properly.

File Structure

• replace Optional. Weather or not this file replaces all of the rules for this fluid
• rules A list of rules for this fluid to follow
  • type Defines when the rule applies. Can be either on_update, which applies the rule when the fluid is updated by nearby blocks or on_flow, which applies the rule when another fluid flows into this fluid.
  • is_still Optional. Weather this fluid must be a source or flowing block. If not defined, any form of the fluid is accepted
  • smoke Optional. Weather or not this interaction creates smoke particles
  • predicate Block predicate that must pass for the interaction to succeed
  • transform A block state provider to place the resulting block of the interaction

Block Predicates

• Added liquid_lab:touching_fluids
  • Passes when an adjacent fluid matches the fluids parameter and if it that fluid could flow into the block
  • Added liquid_lab:adjacent_blocks
    • Passes when an adjacent block matches the predicate's blocks paramenter

Utility

Some simple utility methods are added by the API to make implementing certain aspects of fluids simpler.

Fluid Utils

Contains methods related to fluid interactions, such as splashEntity for use in onEntityEntry to make custom splashing effects with ease.

Particle Utils

Contains methods related to registering block leak particles. The class allows for registering dripping, falling, and landing particles independently or all at once for fluids and gasses.
